PRODUCTS

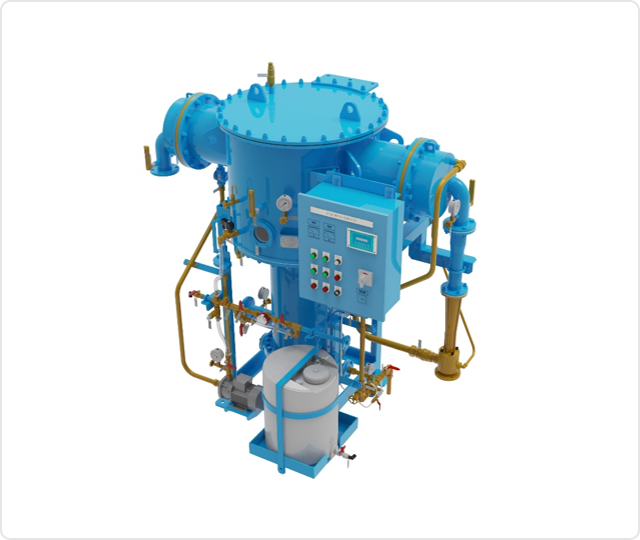

FRESH WATER GENERATOR Fresh water generator ISF-C SERIES

A device for producing fresh water
by evaporating and condensing sea water using engine
jacket water under vacuum (Compact type)

Detailed Description

  • Structure: Consists of a condenser tube in the main body and the upper part of the main body, and a heater tube in the lower part
  • Material of body is made of SUS316L to prevent corrosion
  • Manufactured water is pure distilled water with a salinity of less 10PPM and can be used for all kinds of ship water such as engine cooling water, drinking water, kitchen water

Key Features

High Fresh Water Production Efficiency The evaporative fresh water generator applies an optimized evaporation and condensation structure, enabling stable fresh water production even within a short operating time. Through an efficient heat exchange system, it delivers higher output compared to conventional units of the same capacity, ensuring reliable fresh water supply across various vessel types.

Excellent Corrosion Resistance and Durability The main body is protected with rubber coating or manufactured using SUS316L material, providing outstanding corrosion resistance in harsh seawater environments. Designed for long-term operation, the system minimizes material degradation and performance loss, ensuring stable operation throughout the vessel’s service life.

High-Purity Fresh Water Supply The unit supplies high-purity distilled water with salinity below 10 ppm. It can be safely used for engine cooling water, potable water, galley use, washing, and other onboard applications. Consistent water quality enhances both crew living conditions and equipment reliability.

DIMENSION

Specification table. Model, Ton(m³/Day), Dimension(mm)(L,W,H), Weight(kg)로 구성됩니다.
Model TON
(m³/Day)
Dimension(mm) Weight
(kg)
L W H
ISF-10C 10 1,787 1,203 1,811 1,235
ISF-15C 15 2,080 1,203 2,032 1,235
ISF-20C 20 2,246 1,498 2,245 1,485
ISF-25C 25 2,416 1,528 2,415 1,595
ISF-30C 30 2,220 1,624 2,250 1,705
ISF-35C 35 2,367 1,668 2,246 1,800
